JARULAN CERAMICS POLISHING BELT DESCRIPTION
JARULAN specially designs the diamond (snake-skin) surface for polishing conveyor belt, which is best for increasing the absorptive property of polished goods and excretion performance of waste water. The fabric layer has got patent approved, which is specially good at wear resistance, pressing resistance and durability. KEDA, which is one of the famous machine brands in international ceramics industry, has chosen JARULAN polishing conveyor belts as their original machine belts for years. JARULAN can customize a variety of width, length, thickness, hardness of the open ended or closed ended polishing conveyor belt. Jarulan's polishing conveyor belts have gain good reputation for best performaces around the world.
| Product Name | PVC Conveyor Belt for ceramic/marble polishing |
| No. | HPVC9SSF4PG/ HPVC7SSF4PG |
CERAMICS POLISHING BELT TECHNICAL DATA SHEET
| Top cover | PVC |
| fabric | EM |
| Tension/ number of plies | 60/4 (9.0); 45/3 (7.0); |
| Bottom thickness / profile | 00 |
| Top cover thickness / profile | H8 |
| Color | petrol blue |
| Standard width (mm) | 380/900/950/1000/1200/1500/2000/2200/2600/3000 |
| Max. available width (mm) | 3500 |
| Belt thickness mm | 9.0/7.0 |
| Weight kg/m2 | 10.9 (9.0)/ 8.9 (7.0) |
| F/E at 1% | 60 N/mm (9.0); 45N/mm (7.0) |
| Number of plies | 4(9.0)/3(7.0) |
| Material | PVC |
| Top hardness shore | 75A |
| Top cover thickness(mm) | 2.2 |
| Laterally | stable |
| Flexing mm (20ºC) | 250 |
| Back flexing mm (20ºC) | 350 |
| Prolonged minimum °C | -15 |
| Prolonged maximum °C | 80 |
| Short minimum °C | -15 |
| Short maximum °C | 100 |
| Application | polishing machines for Ceramics, marble, tiles, stones |
ADVANTAGES OF JARULAN CERAMICS POLISHING BELT

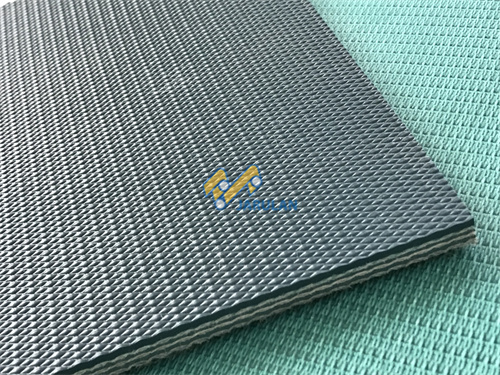

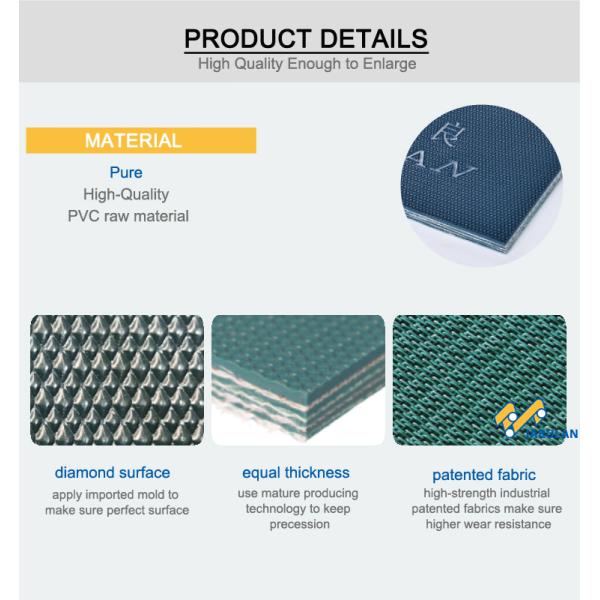

- Diamond pattern (snake-skin) surface design, which can effectively promote the ability of wast water excretion.
- Patented fabric layer design, making JARULAN's polishing conveyor belt is better than others in the durability and wear resistance.
- Imported production equipments, confirming JARULAN's conveyor belts with uniform thickness, moderate hardness.
- Suppliers of big famous machine brands like KEDA, trustworthy.
- Experienced jointing workers; dealers are throughout the China and even the world, to provide timely on-site service.
RECOMMENDATION OF CERAMICS POLISHING BELT TYPES
| ITEM | Thickness (MM) | Material | Surface | Bottom | Color | Plies | Top hardess shore | 1% Extension stress | Weight | Min. roller diameter | Prodiction width |
| PVC7SSF3PB-50 | 7.00 | PVC | snake skin | fabric | petrol bule | 3 | 45-50 | 45 | 8.9 | 120 | 1300/1000/950/900/850 |
| PVC7SSF3PB | 7.00 | PVC | smooth | fabric | petrol bule | 3 | 75 | 45 | 8.9 | 120 | 1300/1000/950/900/850 |
| PVC9SSF4PB | 9.00 | PVC | snake skin | fabric | petrol bule | 4 | 75 | 60 | 10.9 | 350 | 1300/1000/950/900/850 |
| PVC9/5SF4BE | 9.50 | PVC | snake skin | fabric | Blue color | 4 | 75 | 60 | 11.5 | 350 | 1300/1000/950/900/850 |
**We can manufacture max. width of 3500mm. Other width dimensions of PVC polishing conveyor belts are avaialble.

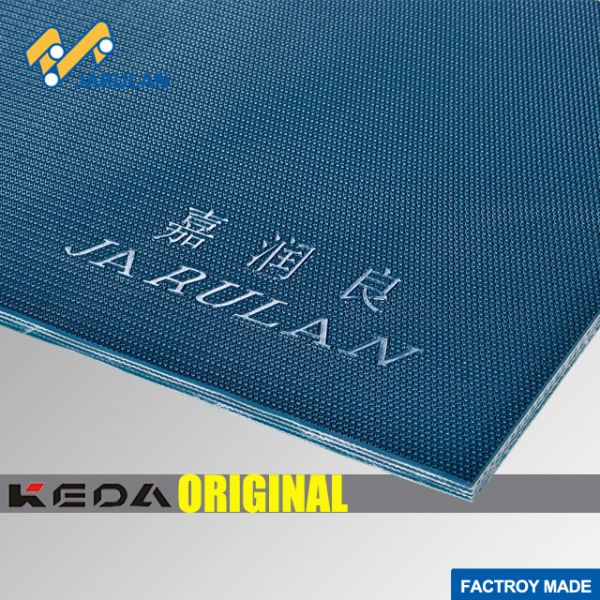

JURULAN is acting as the original belt supplier to KEDA machine since 2015.
1. Diamond pattern (snake-skin) surface design, can effectively promote the ability of wast water excretion.
2. Patented fabric layer design, making JARULAN's polishing conveyor belt is better than others in the durability and wear resistance.
3. Imported production equipments, confirming JARULAN's conveyor belts with uniform thickness, moderate hardness.
4. Suppliers of big famous machine brands like KEDA, trustworthy.
5. Experienced jointing workers; dealers are throughout the China and even the world, to provide timely on-site service.
If our high quality diamond surface 7mm or 9mm pvc polishing conveyor belt for ceramics polishing machine caters to your requirement, welcome to buy the low price and quality belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
If our high quality diamond surface 7mm or 9mm pvc polishing conveyor belt for ceramics polishing machine caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
Hot Tags: pvc polishing conveyor belt diamond surface PVC polishing conveyor belt 7mm PVC conveyor belt 9mm PVC conveyor belt PVC polishing conveyor belt for ceramics polishing machine low price pvc polishing conveyor belt pvc polishing conveyor belt price China diamond surface PVC polishing conveyor belt manufacturers China diamond surface PVC polishing conveyor belt factory diamond surface PVC polishing conveyor belt manufacturers
Application picture of polishing belts
